General

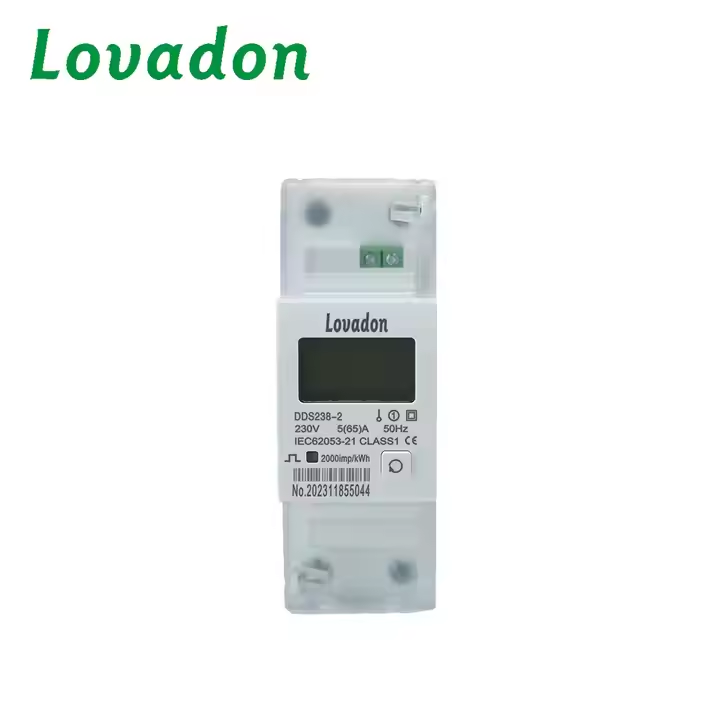

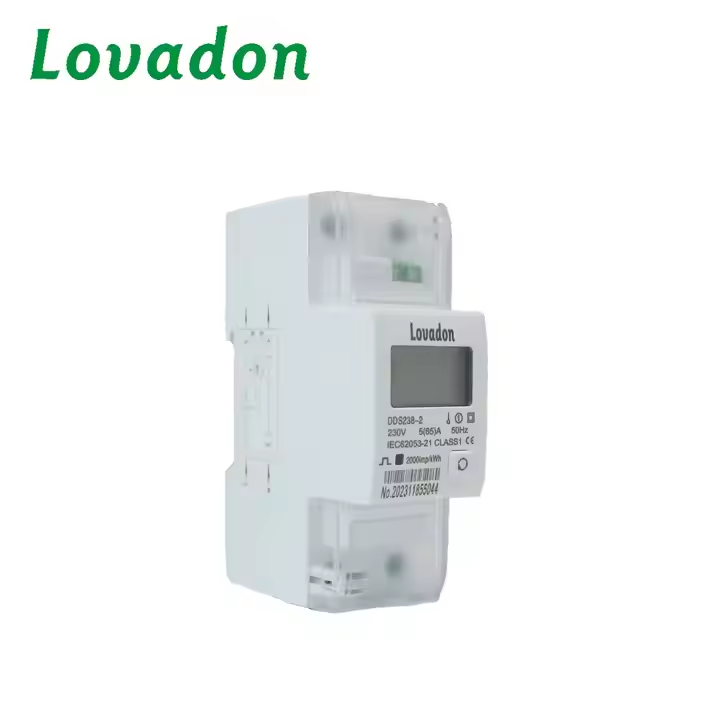

The meter is designed to measure single-phase two-wire AC active energy for residential, utility, and industrial applications. It is a long-life meter with the advantages of high stability, high overload capability, low power loss, and small volume. LCD display: 5+1.

1. LCD display 5+1: total active energy, import active energy, export active energy, and resettable active energy display.

2. Bi-directional measurement: import active energy and export active energy display.

3. If the push button is held for 10 seconds, the resettable active energy will reset to zero, but total kWh, import kWh,

and export kWh will not be reset.

4. LCD display with backlight.

5. Pulse LED indicates the working status of the meter. Passive pulse output with optical coupling isolation.

6. Energy data can be stored in a memory chip for more than 15 years after power off.

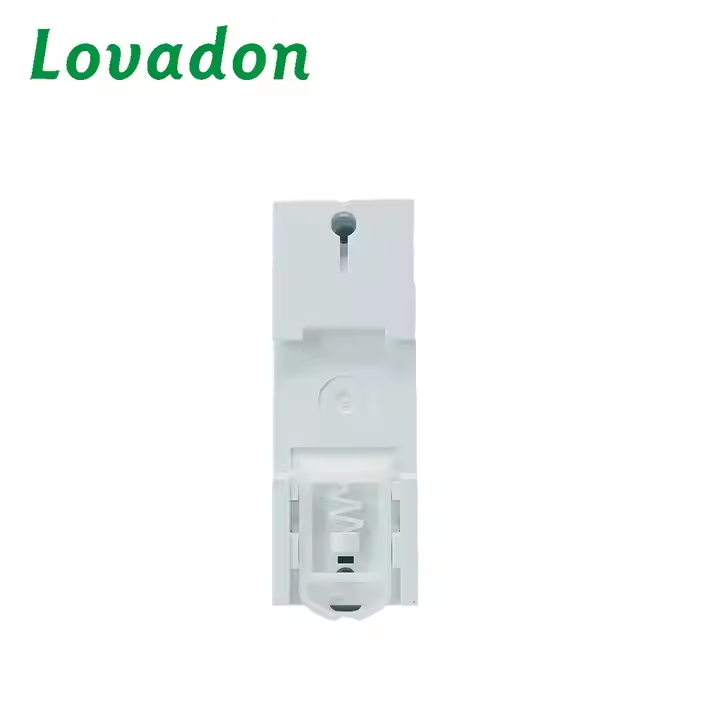

7. 35mm DIN rail installation.

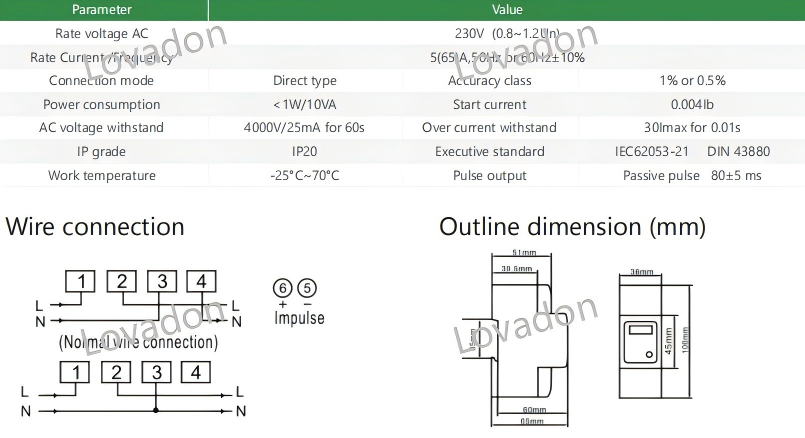

Technical Parameters
