NDQ1-125S 4P 100A 4P Manual and Auto Dual Power Transfer Switch AC220V 50/60Hz IEC60947-6-1 Standard PC Class with High Impact Resistance-Yueqing Lovadon Electric Co., Ltd.

Best seller

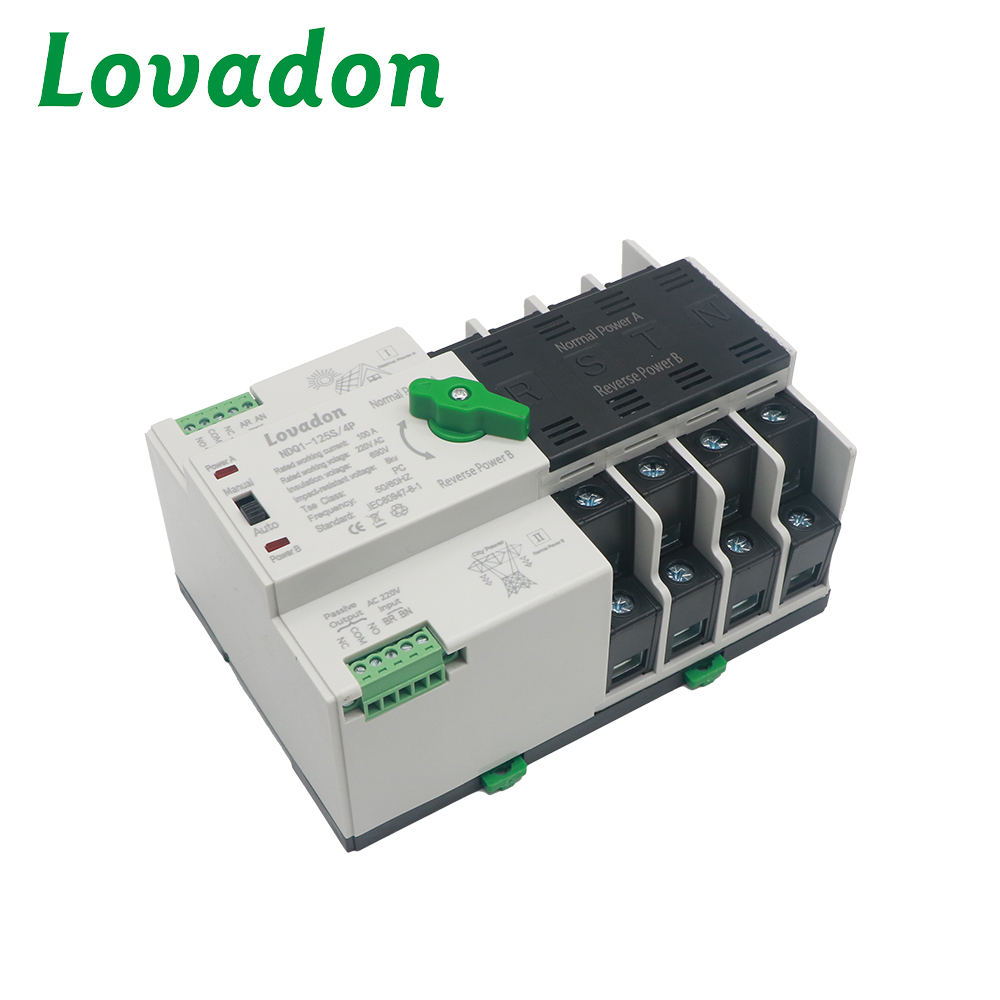

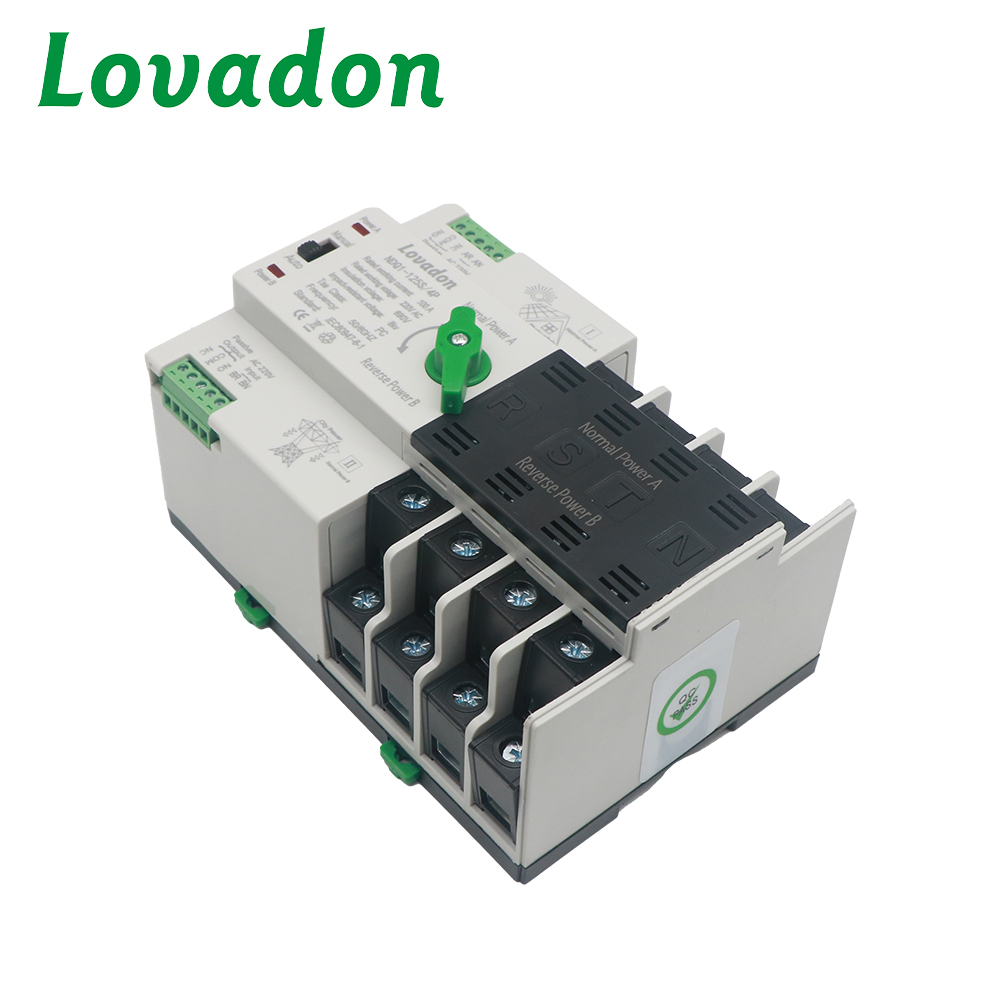

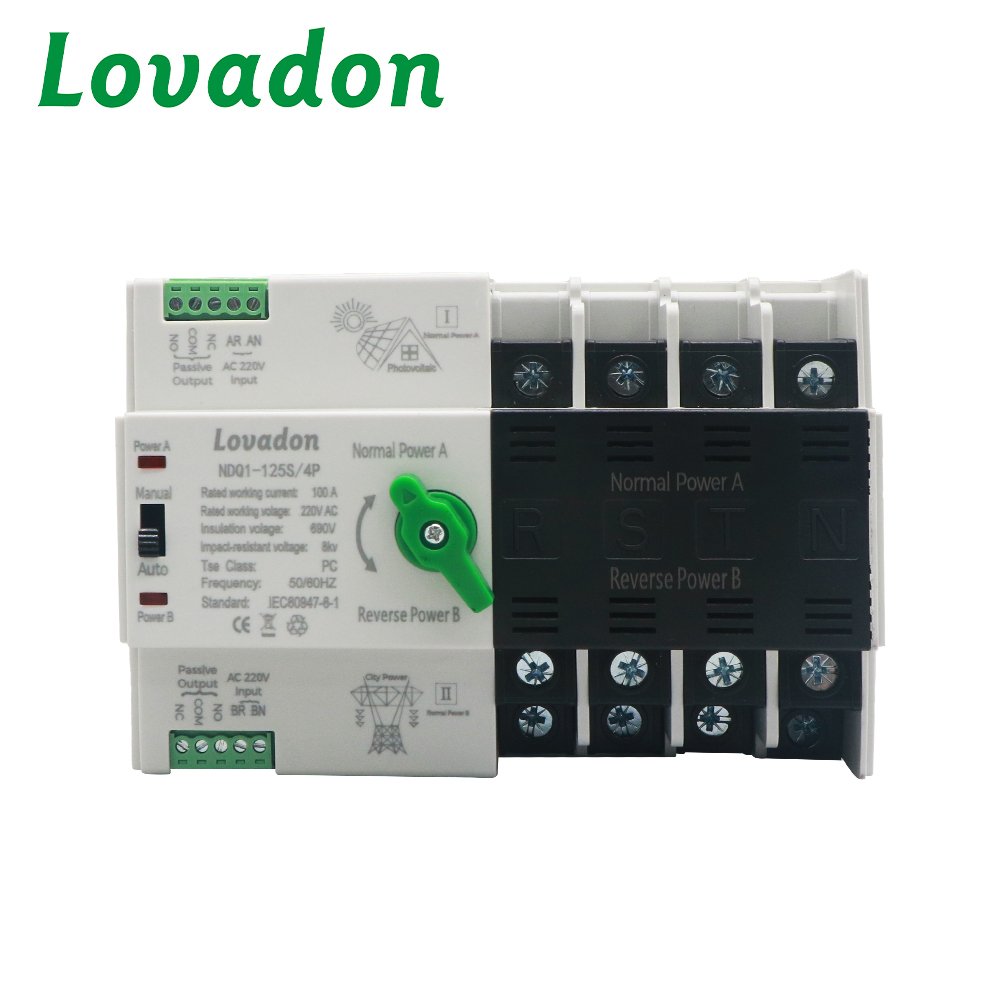

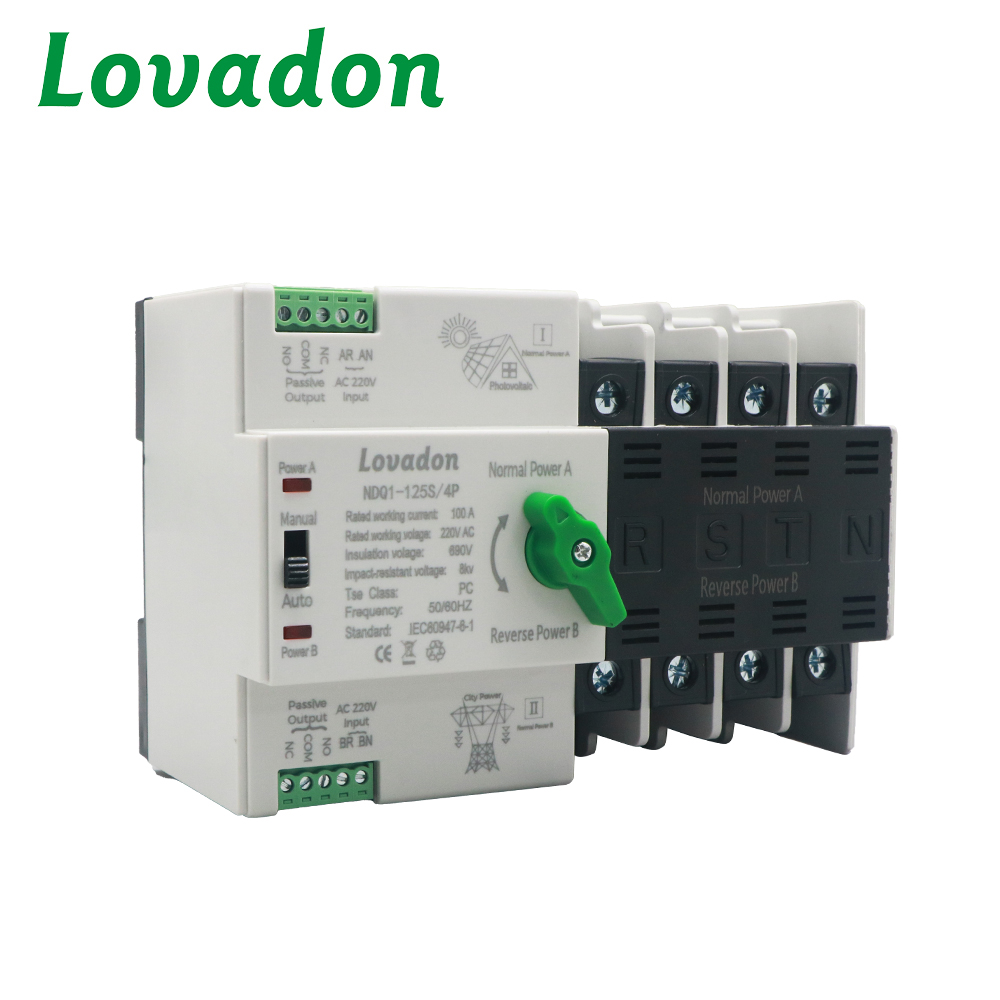

NDQ1-125S 4P 100A 4P Manual and Auto Dual Power Transfer Switch AC220V 50/60Hz IEC60947-6-1 Standard PC Class with High Impact Resistance

The NDQ1 Dual Power Automatic Transfer Switch is a compact, rail-mounted miniature ATS designed for residential and light commercial applications.It automatically monitors the main and standby power sources. In the event of a main power failure, it transfers the load to the standby source within milliseconds, ensuring continuous, reliable, and safe power supply.It is specifically engineered for easy installation in PZ30 distribution box···

Request A Quick Quote

Product Details

General

The NDQ1 Dual Power Automatic Transfer Switch is a compact, rail-mounted miniature ATS designed for residential and light commercial applications.

It automatically monitors the main and standby power sources. In the event of a main power failure, it transfers the load to the standby source within milliseconds, ensuring continuous, reliable, and safe power supply.

It is specifically engineered for easy installation in PZ30 distribution boxes.

The ATS features a robust construction, reliable transfer operation, ease of installation and maintenance, and a long service life.

Compliant with GB/T 14048.11 standards, this ATS meets the requirements for low-voltage switchgear and control devices.

Yueqing Lovadon Electric Co., Ltd.

NDQ1-125S 4P 100A 4P Manual and Auto Dual Power Transfer Switch AC220V 50/60Hz IEC60947-6-1 Standard PC Class with High Impact Resistance

General

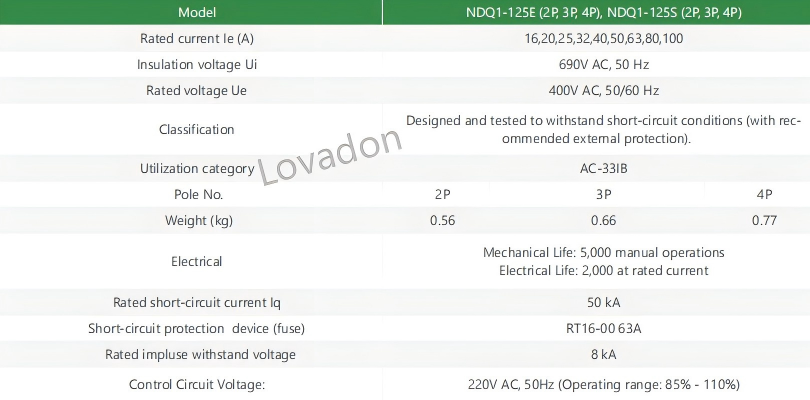

Technical Parameters

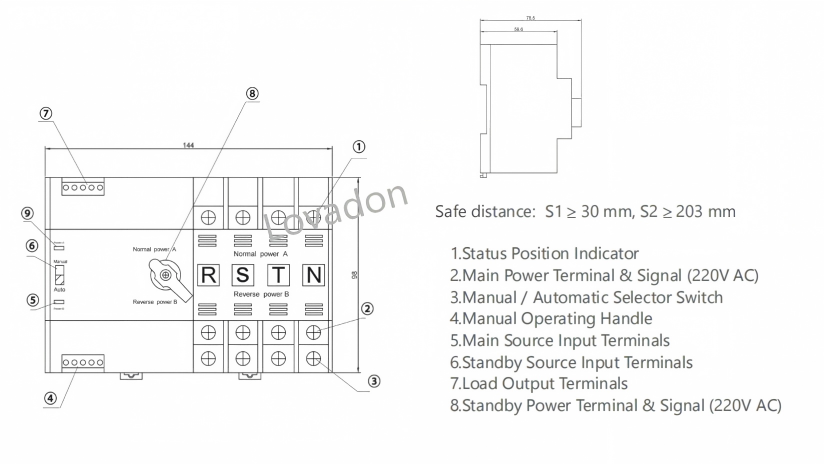

Overall and installation dimension of 100 (mm)
