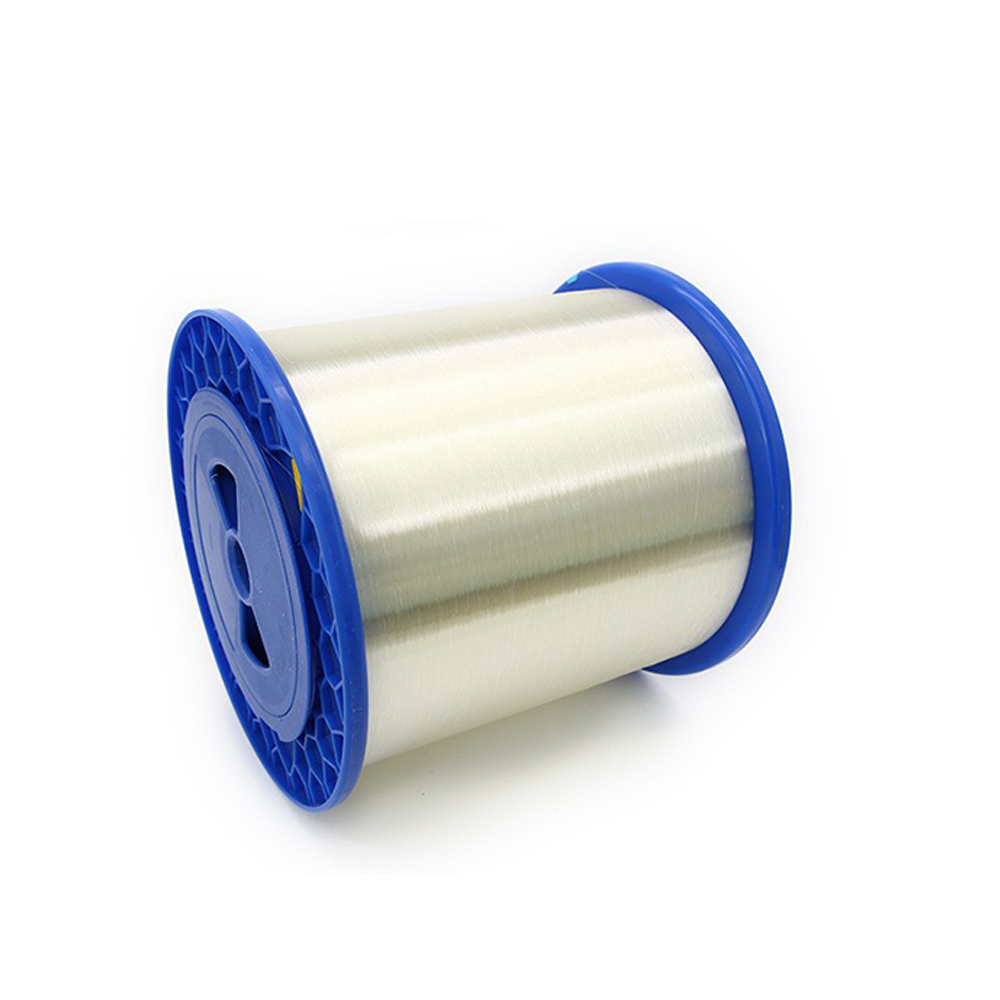

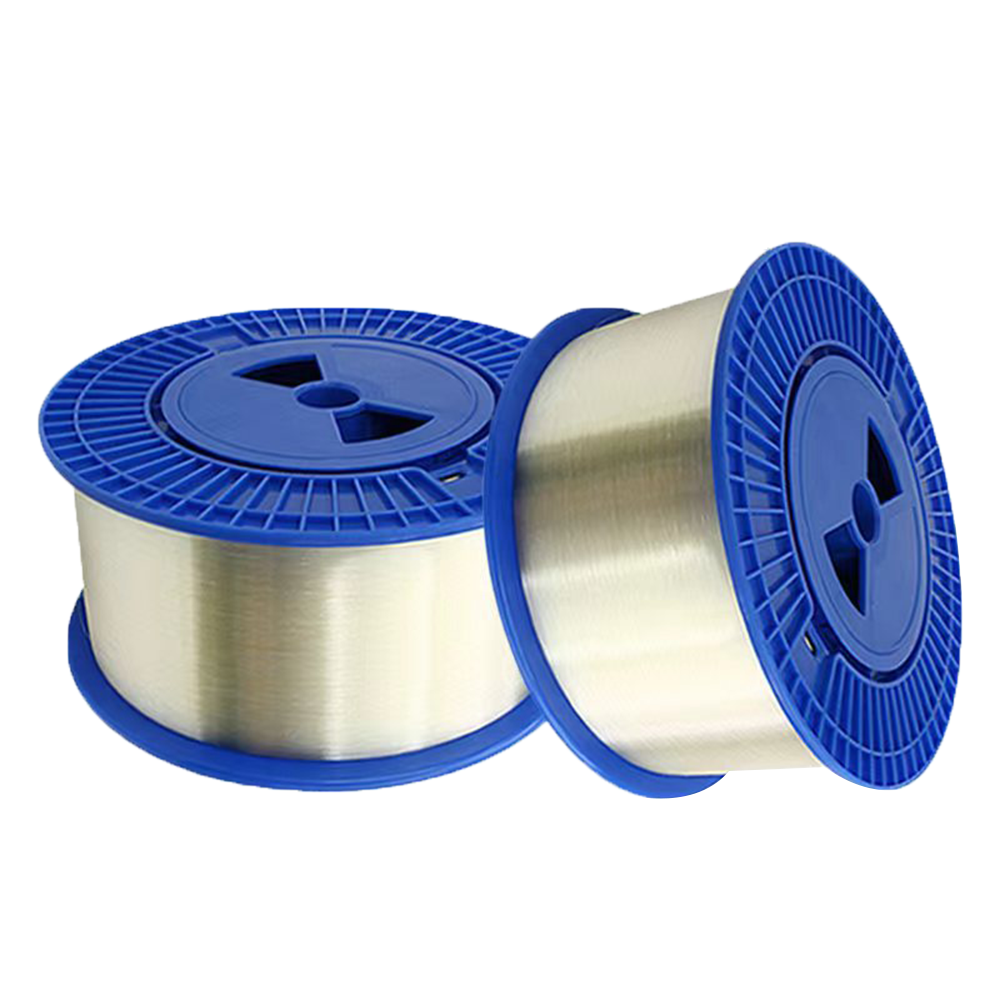

Product Introduction
Standard single-mode fiber, also known as non-dispersion-shifted single-mode fiber, has an extended wavelength range and is currently the most widely used type of fiber. The operating wavelength can be
selected from 1310 nanometers and 1550 nanometers.

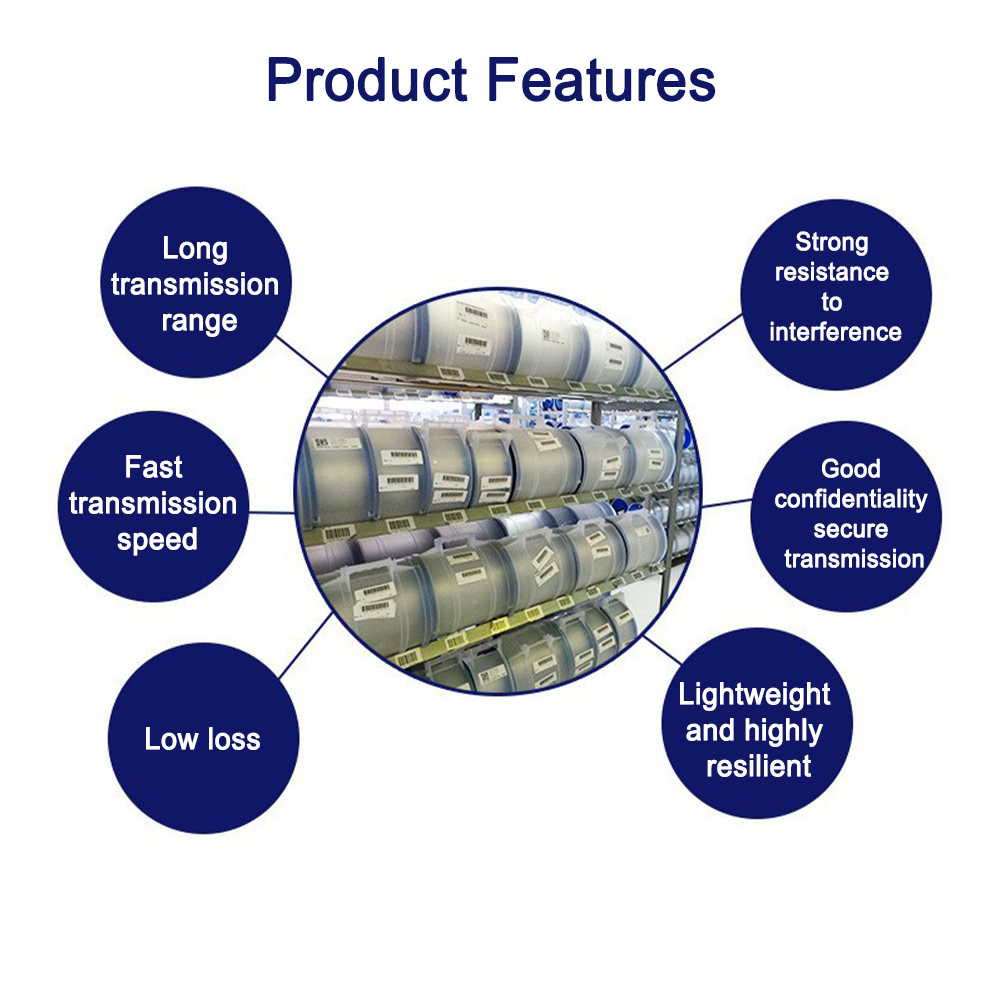

Performance highlights
● The wider wavelength range is suitable for high-speed networks.
● Accurate mode field diameter (MFD) characteristics to ensure low fusion loss and good compatibility.
Application scenario
● 100G & B100G high-speed, long-distance and long-span backbone network.
● Large bandwidth metropolitan area network and access network.
Product Specification
| Parameter | Conditions | Units | Value |
| Optical |
|
|
|
| Attenuation | 1310 nm | dB/km | ≤ 0.350 |
| 1383 nm | dB/km | ≤ 0.350 |
| 1550 nm | dB/km | ≤ 0.210 |
| 1625 nm | dB/km | ≤ 0.240 |
| Attenuation vs. Wavelength | 1310 nm VS. 1285-1330 nm | dB/km | ≤ 0.04 |
| 1550 nm VS. 1525-1575 nm | dB/km | ≤ 0.03 |
| Zero Dispersion Wavelength |
| nm | 1300 - 1324 |
| Zero Dispersion Slope |
| ps/(nm2·km) | 0.073 - 0.092 |
| Dispersion | 1550 nm | ps/(nm·km) | 13.3 - 18.6 |
| 1625 nm | ps/(nm·km) | 17.2 - 23.7 |
| Polarization Mode Dispersion (PMD) |
| ps/√km | ≤ 0.2 |
| Cut-off Wavelength λcc |
| nm | ≤ 1260 |
| Mode Field Diameter (MFD) | 1310 nm | μm | 9.2 ± 0.4 |
| 1550 nm | μm | 10.4 ± 0.5 |
| Attenuation Discontinuity | 1310 nm | dB | ≤ 0.03 |
| 1550 nm | dB | ≤ 0.03 |
| Bidirectional Attenuation | 1310 nm | dB/km | ≤ 0.04 |
| 1550 nm | dB/km | ≤ 0.04 |
| Geometrical |
|
|
|
| Cladding Diameter |
| μm | l25±0.7 |
| Cladding Non-Circularity |
| % | ≤ l.0 |
| Core/Cladding Concentricity Error |
| μm | ≤ 0.6 |
| Coating Diameter (Uncolored) |
| μm | 242±7 |
| Coating/Cladding Concentricity Error |
| μm | ≤ l2 |
| Curl |
| m | ≥ 4 |
| Environmental (1550nm, 1625nm) |
|
|
|
| Temperature Cycling | -60°C to +85°C | dB/km | ≤ 0.03 |
| High Temperature & High Humidity | 85°C, 85% RH, 30 days | dB/km | ≤ 0.03 |
| Water Immersion | 23°C, 30 days | dB/km | ≤ 0.03 |
| High Temperature Aging | 85°C, 30 days | dB/km | ≤ 0.03 |
| Mechanical |
|
|
|
| Proof Stress * |
| GPa | 0.69 |
| kpsi | l00 |
| Coating Strip Force | Peak | N | l.3 - 8.9 |
| Average | N | l.0 - 5.0 |
| Tensile Strength | Fk=50% | GPa | ≥ 4.00 |
| Fk=l5% | GPa | ≥ 3.20 |
| Dynamic Fatigue (Nd) |
|
| ≥ 20 |
| Macrobending Loss |
|
|
|
| Ø60 mm×l00 t | l550 nm | dB | ≤ 0.05 |
| l625 nm | dB | ≤ 0.05 |
| * Higher proof test levels are available. |
